BLACK CORE · HIGH-CURRENT 1P MCCB
RFM1-250L / 1P

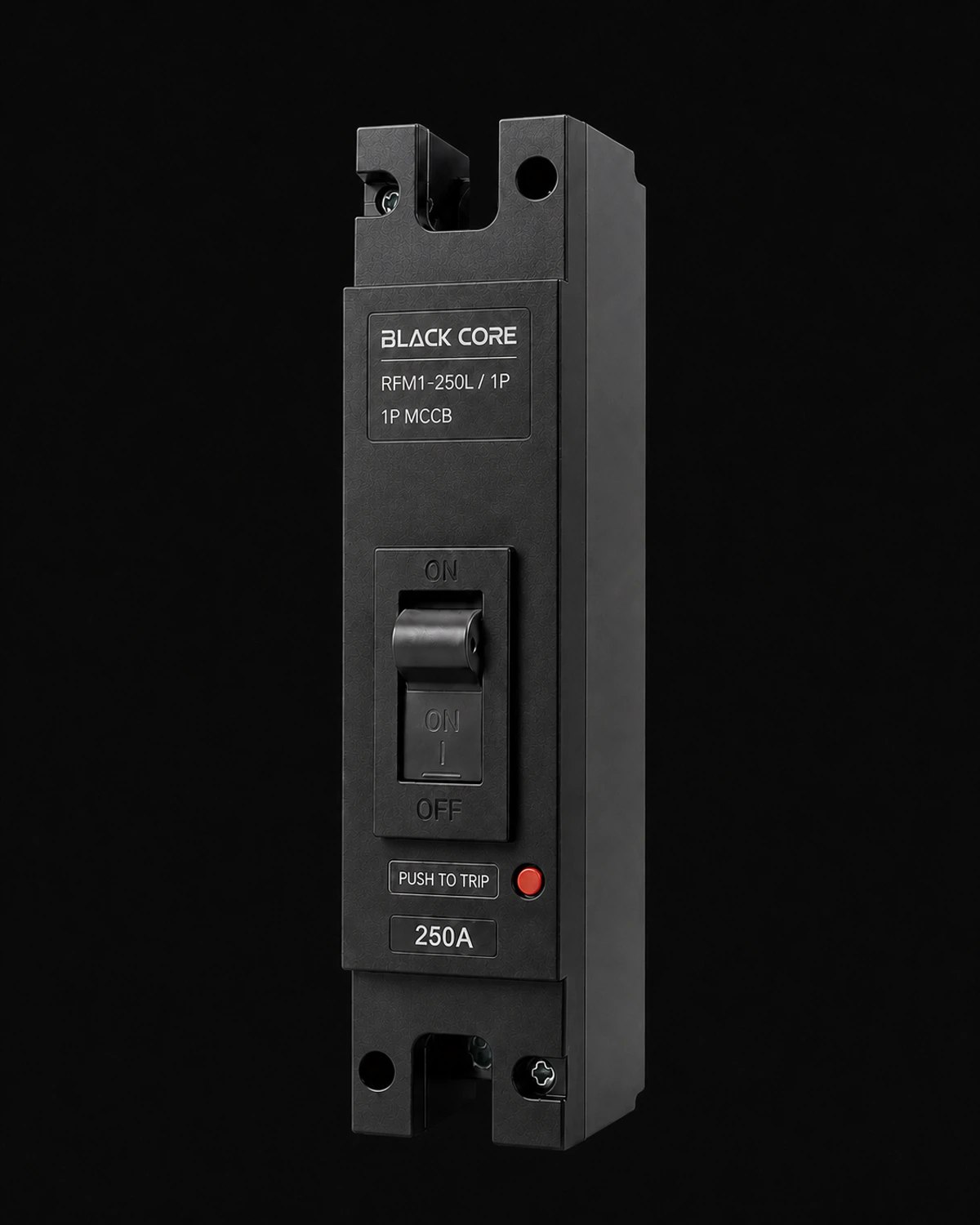

Product visualization based on current production structure.
Number of Poles1P
Current Range125A–250A
CustomizableCustomizable ratings available
1P MCCB125A–250A · Customizable
01 — PRODUCT GALLERY
THE BLACK CORE PRODUCT VISUAL.
Product visualization based on current production structure.
Current Range
125A–250A
Three defined series cover customizable ratings from 40A to 400A.
125A250A
CustomizableCustomizable ratings available
02 — INSTALLATION DIMENSIONS
MECHANICAL DIMENSIONS.

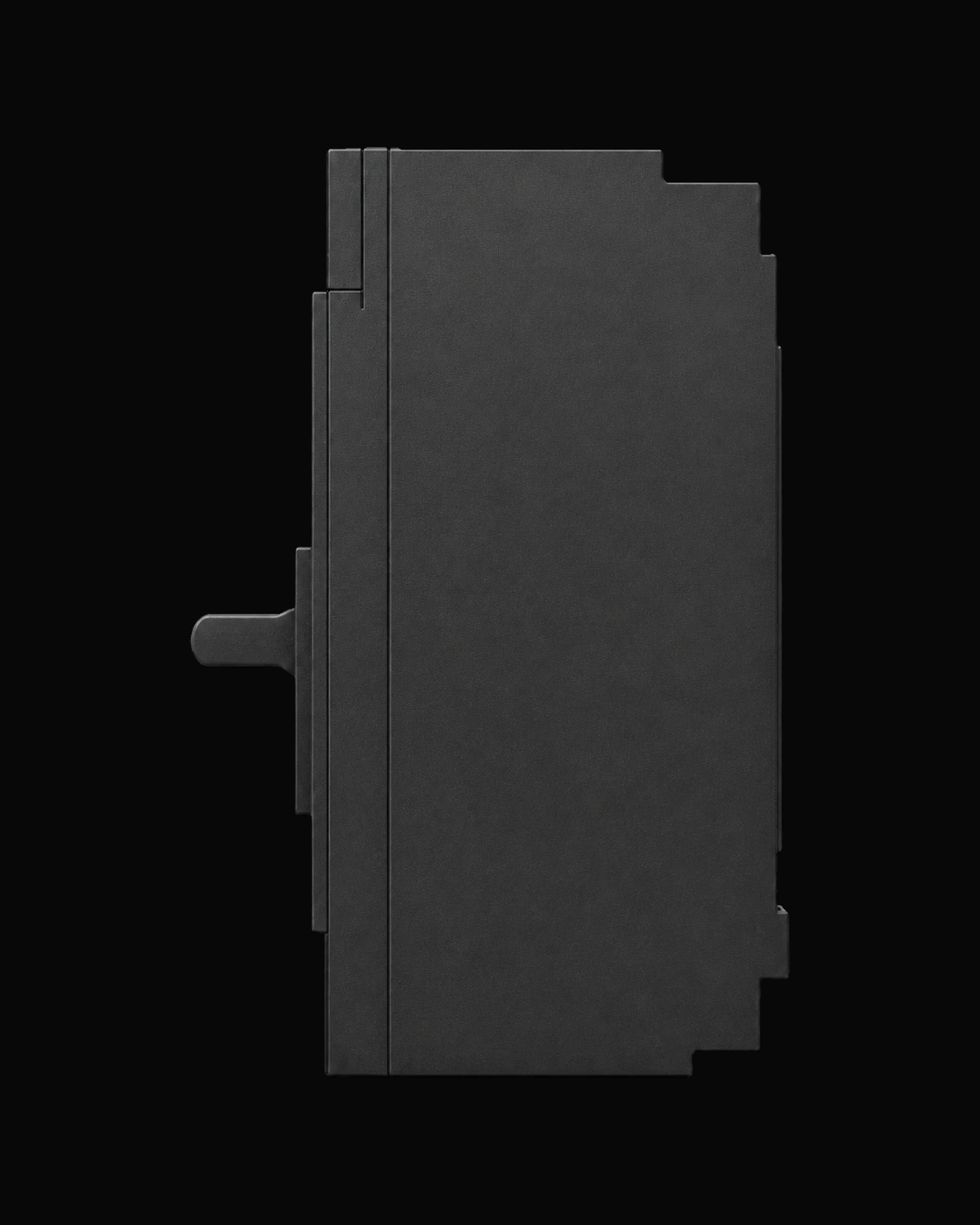

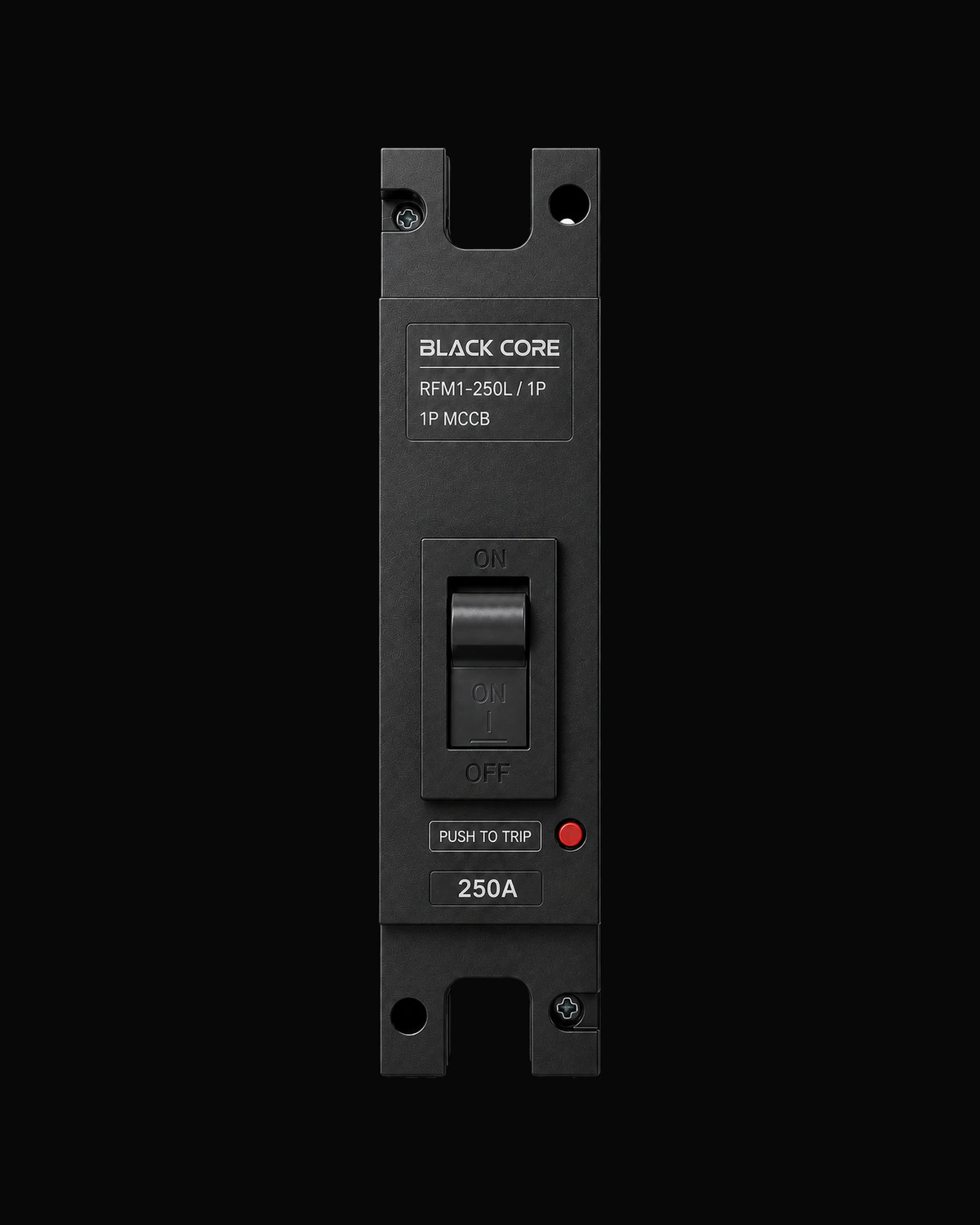

Review the formal front, side and terminal views below. All dimensions are shown in millimetres.
Width / mm47 mm
Height / mm165 mm
Depth / mm106 mm
View full drawing ↗03 — TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS.
Electrical, mechanical and compliance data organized for specification review.
Product TypeMolded Case Circuit Breaker (MCCB)
ModelRFM1-250L / 1P
ManufacturerSuzhou Dongge Power Technology Co., Ltd.
Number of Poles1P
Rated Current Range125A–250A
Rated Current125A / 140A / 160A / 180A / 200A / 225A / 250A
Rated Operational Voltage UeAC400V
Rated Insulation Voltage Ui1000V
Rated Impulse Withstand Voltage Uimp8kV
Breaking ClassL Type
Rated Service Short-Circuit Breaking Capacity Ics10kA
Rated Ultimate Short-Circuit Breaking Capacity Icu15kA
Trip UnitThermal-Magnetic
Selectivity CategoryCategory A
Isolation FunctionYes
Applicable StandardGB/T 14048.2-2020
Test Report No.19101-DWRY220494
Certificate NumberCQC22107358969
Certification Validity2022-09-13 to 2032-09-12
InstallationFixed, vertical mounting
